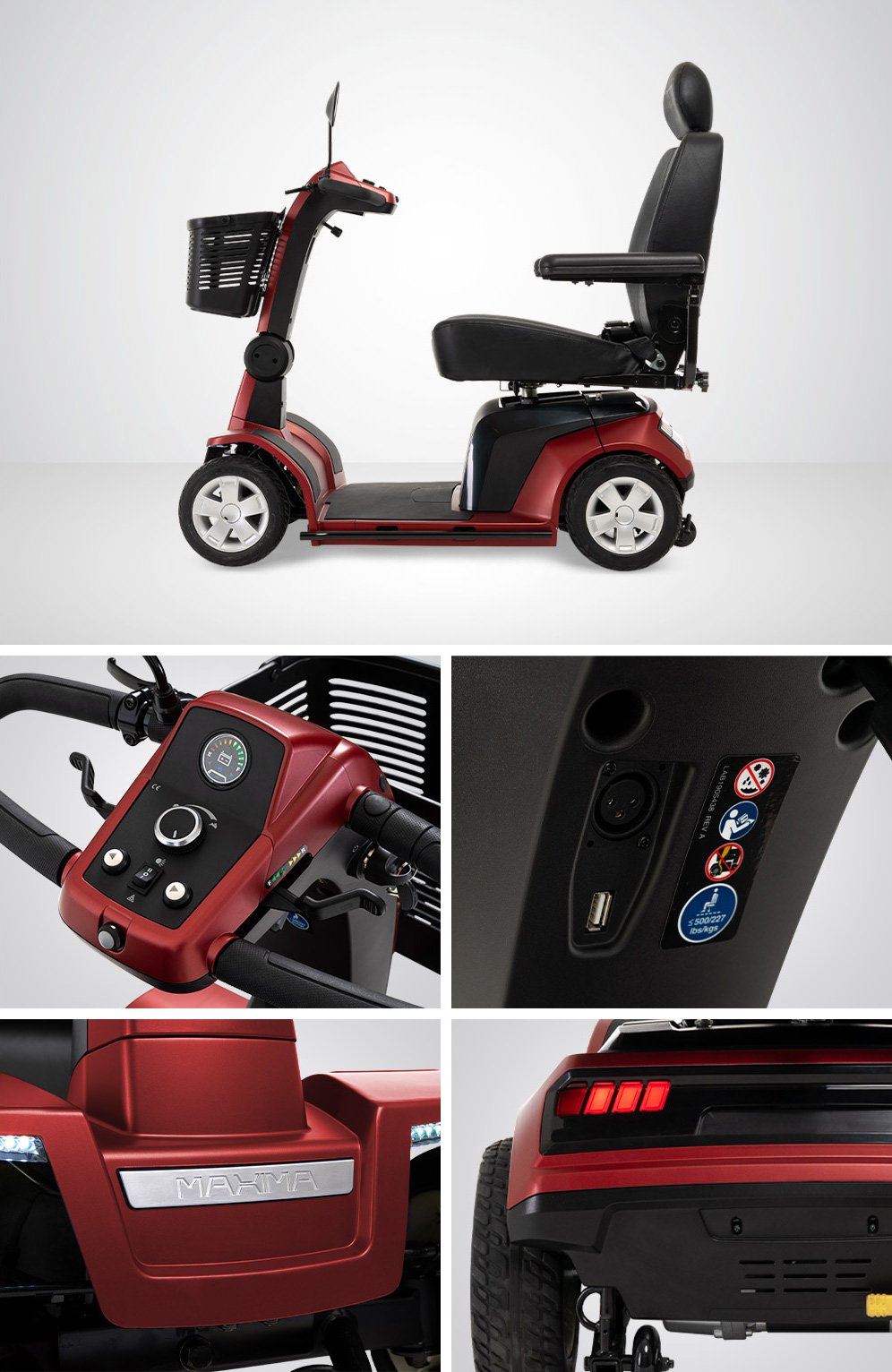

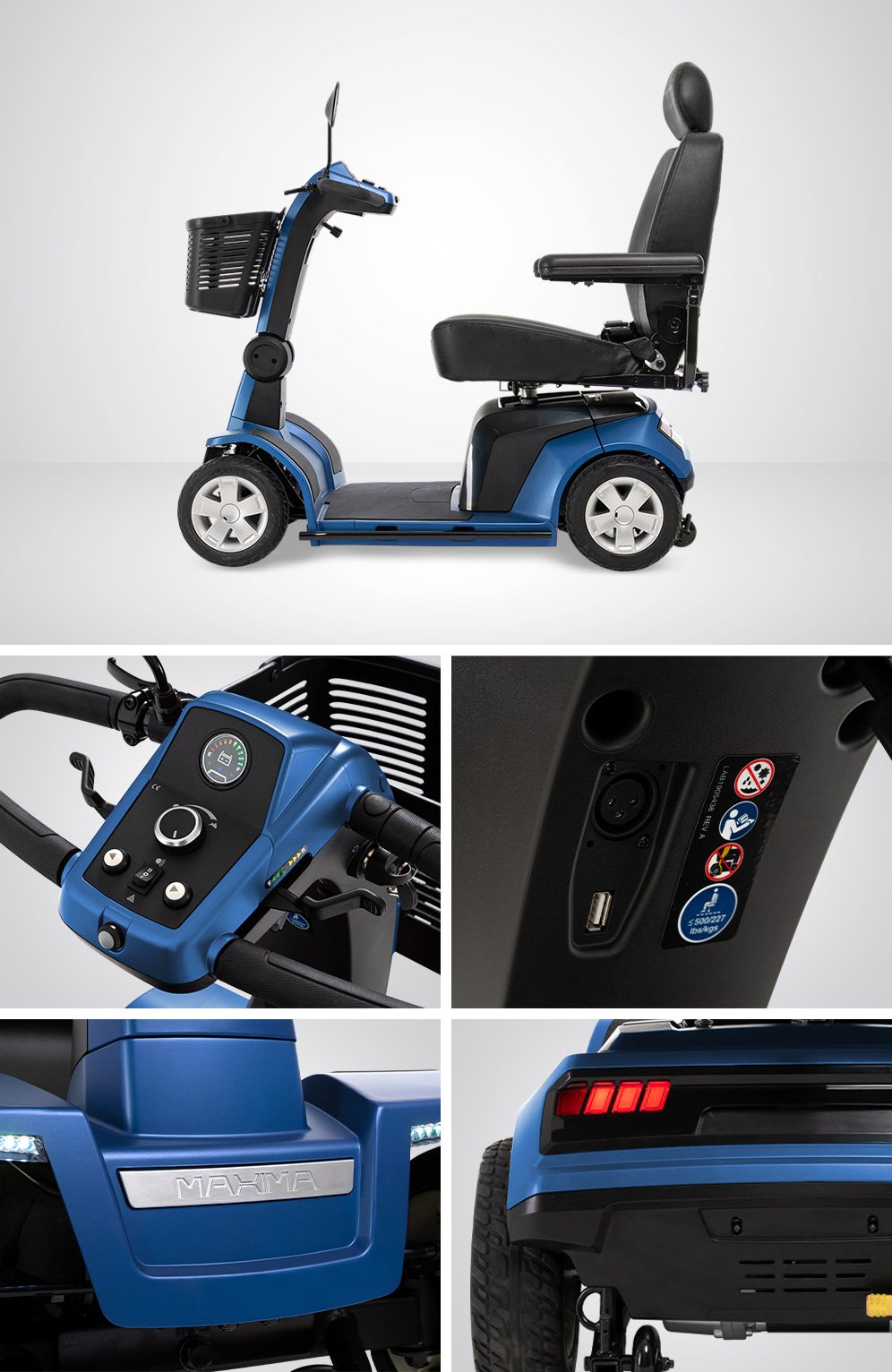

Maxima 4-Wheel Features:
-
- 500 lbs. weight capacity
- Up to 5.8 mph
- 53″ turning radius
- Batteries Included
- Up to 19.5 miles per charge
- Delta tiller with ergonomic wraparound handles lets you operate the scooter with one hand
- Non-scuffing, flat-free tires
- Full LED light package include front headlights, turn signals, and rear taillights
- New! Infinite position tiller lever (mech lock)
- Durable and stylish side bumper are designed to reduce and prevent damage to your scooter shroud
- XLR battery charger on tiller
- 22”x18”-20” High-back black vinyl, depth adjustable, limited recline,4-point swivel seat and 7” headrest with 3” of adjustments
- Standard front basket
- User-friendly console features ambient voltmeter, horn button, light switch, on/off key switch, speed control and turn signal button
- USB mobile device charging port built into tiller for convenient charging of smart phones and portable electronic devices
- Optional power elevating seat provides an additional 6.25” of height to access cabinets, countertops and other out-of-reach items
- K0808 Group 2 Very Heavy Duty
*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments
| CATEGORY | SPECIFICATION |
|---|---|
| Model |
Maxima
|
| Model Number |
SC941
|
| Weight Capacity | 500 lbs. |
| Maximum Speed | Up to 5.8 mph |
| Ground Clearance | 2.25” at motor |
| Turning Radius | 3-wheel: 49″ 4-wheel: 53″ |
| Overall Length | 47.5″ |
| Overall Width | 27” (not including armrest) |
| Seat-to-Deck Height Range | 17.13” – 19.13” Power Elevating Seat: 17.36” – 23.61” |
| Seat-to-Ground Height Range | 22.1” – 24.1” Power Elevating Seat: 22.32” – 28.57” |
| Front Tires | 10” |
| Rear Tires | 10.75” x 3.6” solid |
| Range Per Charge | Up to 19.5 miles |
| Total Weight without Batteries | (w/out batteries): 196.75 lbs. (w/batteries): 269.8 lbs. |
| Heaviest Piece When Disassembled | Unit (w/out seat and batteries) 143.6 lbs. |
| Standard Seating | Type: Depth-adjustable, high-back Weight: 53.2 lbs. Material: Black vinyl Dimensions: 22”x 18”-20” (depth adjustable) Back height: 19.75” |
| Drive System | Sealed transaxle, 24-volt DC motor |
| Dual Braking System | Regenerative and electromechanical |
| Battery Requirement | Size: (2) Gel, 12V, 58Ah, NF-22 Weight: 36.5 lbs. each |
| Battery Charger | Off-board, 5 amp |
| Warranty | lifetime limited Drivetrain: 2-year limited Electronics: 2-year limited Batteries: 13-month limited |
| Color Option | Garnet Red (matte) Ocean Blue (matte) |
| 1 Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments. 2 Due to manufacturing tolerances and continued product improvement, this specification is subject to a variance of +/- 3%. 3 Does not account for anti-tip clearance. 4 Width of base (not including seat). 5 Battery weight not included. 6 Includes standard seat weight. 7 Battery weight may vary based on manufacturer. 8 Deep cycle (AGM or gel cell type recommended). 9 Varies with user weight, terrain type, battery amp- hour (AH), battery charge, battery condition and tire condition. This specification can be subject to a variance of (+ or -) 10%. 10 Tested in accordance with ANSI/RESNA, WC Vol 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. |
|
