Power Chair Specifications & Warranty Details

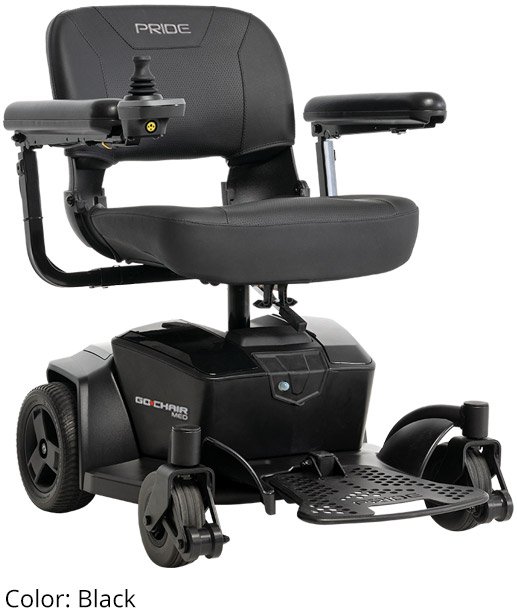

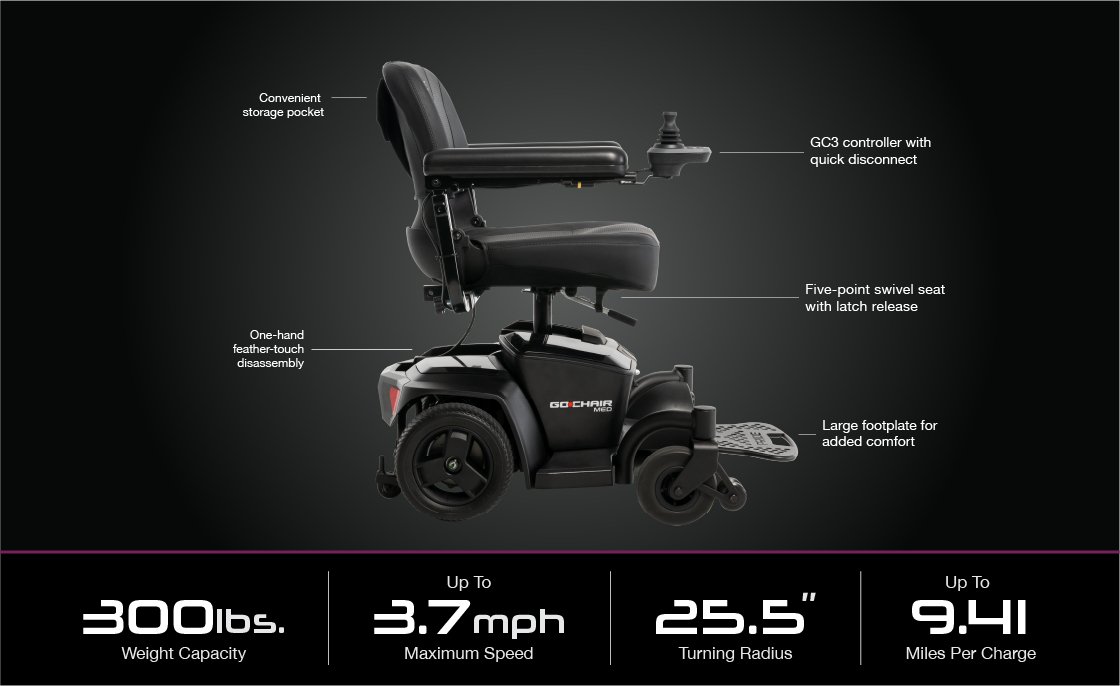

| Model | Go Chair |
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 25.5″ |
| Width1 | 22.5″ [25.5″ with armrest] |
| Length1,2 | 28.5″ without front rigging 33″ with front rigging |
| Maximum Speed3 | Up to 3.7 mph |
| Ground Clearance1 | 1.75″ |
| Front Wheels | 6″ solid casters |
| Drive Wheels | 9″ solid |
| Rear Wheels | 3″ solid anti-tips |
| Standard Electronics | 40 amp, PG GC3 (non-programmable) |
| Battery Size (2 required) | 18 Ah, 12 V, deep-cycle |
| Standard Battery Charger | Off-board, 2 amp |
| Per-Charge Range3,6 | Up to 8.7 miles at 300 lbs. Up to 13.2 miles at 200 lbs. |
| Battery Weight5 | 14 lbs. each |

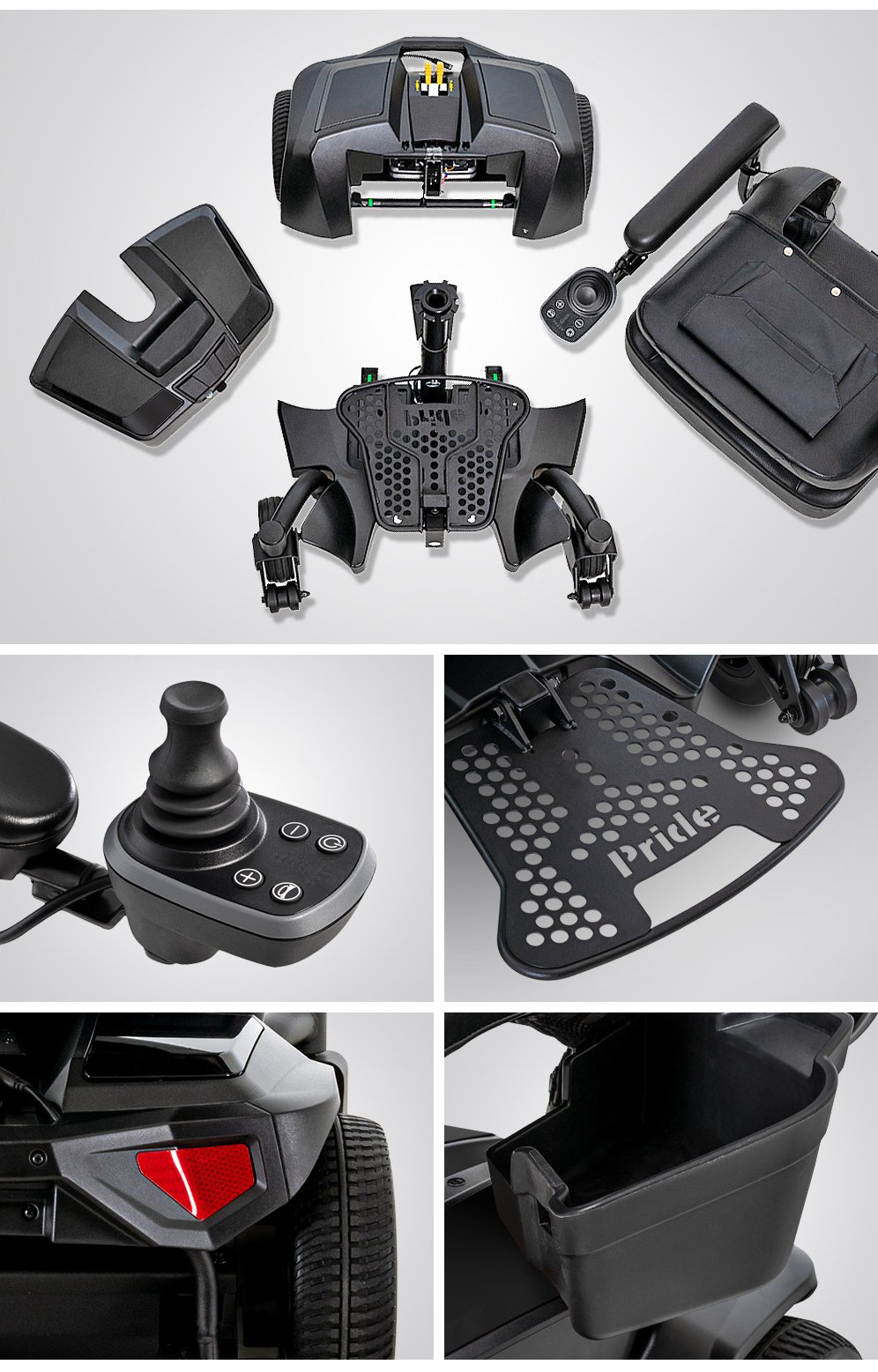

| Weight of Heaviest Piece4 | 36 lbs. (rear) |
| Standard Seat Weight | 30 lbs. |
| Standard Seat Size | Compact, Foldable (18″x17″) |
| Warranty | 5-year limited on frame; 13-month limited on electronics; 13-month limited on drive motors |
Notes:
1. Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
2. Without front riggings.
3. Varies with user weight, terrain, battery type, battery condition and tire pressure.
4. Does not include seat or battery weights.
5. Battery weight may vary based on manufacturer.
6. Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
