Victory® 10.2 4-Wheel
*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments
Victory® 10.2 4-Wheel Features:
-
- 400 lbs. weight capacity
- Up to 5.2 mph maximum speed
- 52.25″ turning radius
- Up to (U1) 11 miles per charge, (40AH) 13.5 miles per charge
- Standard front basket
- Frosted LED headlights and low-mounted LED pathway light brightens your route, Long-lasting, maximum-intensity LED headlight offers optimal pathway illumination
- Exclusive stylish, lightweight, non-scuffing black, low-profile tires
- Exclusive one-hand feather touch disassembly provides the ultimate quick transport system
- Puddle light

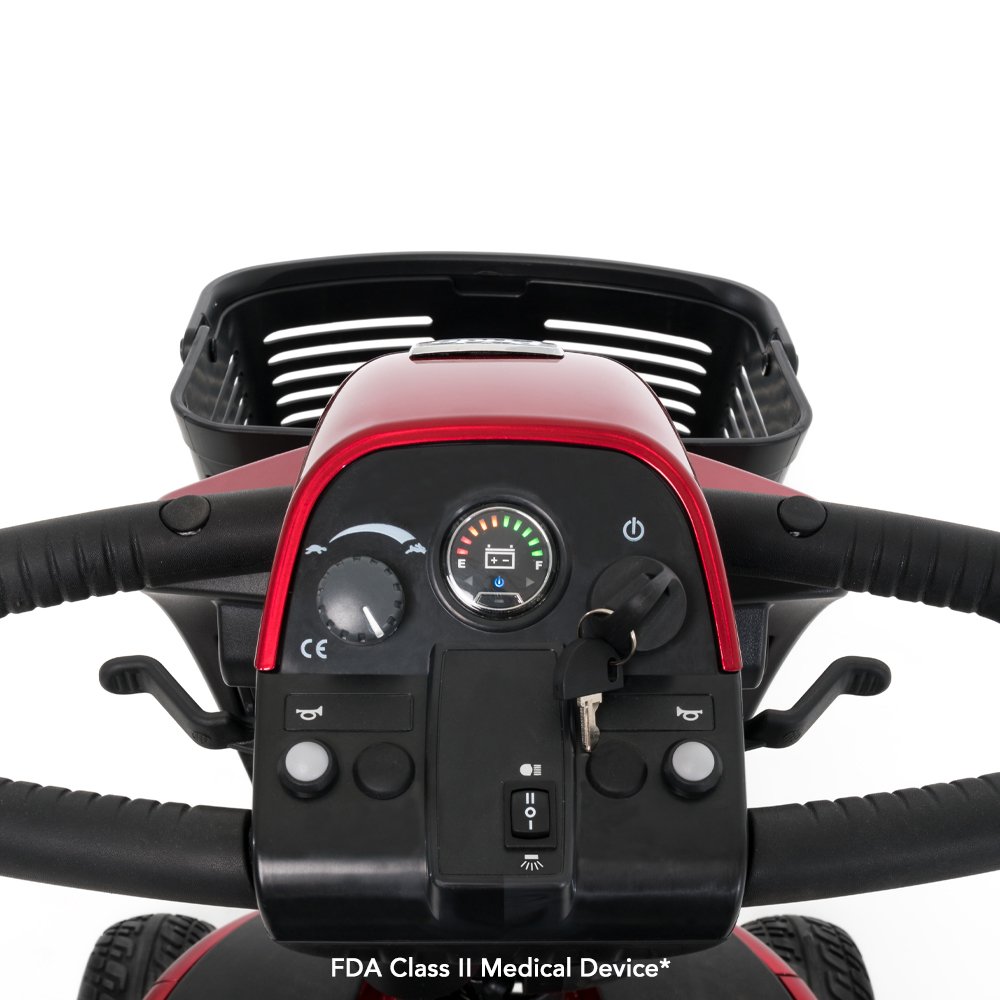

- Integrated storage/cup holder in tiller
- New ambient voltmeter adjusts brightness to suit your environment

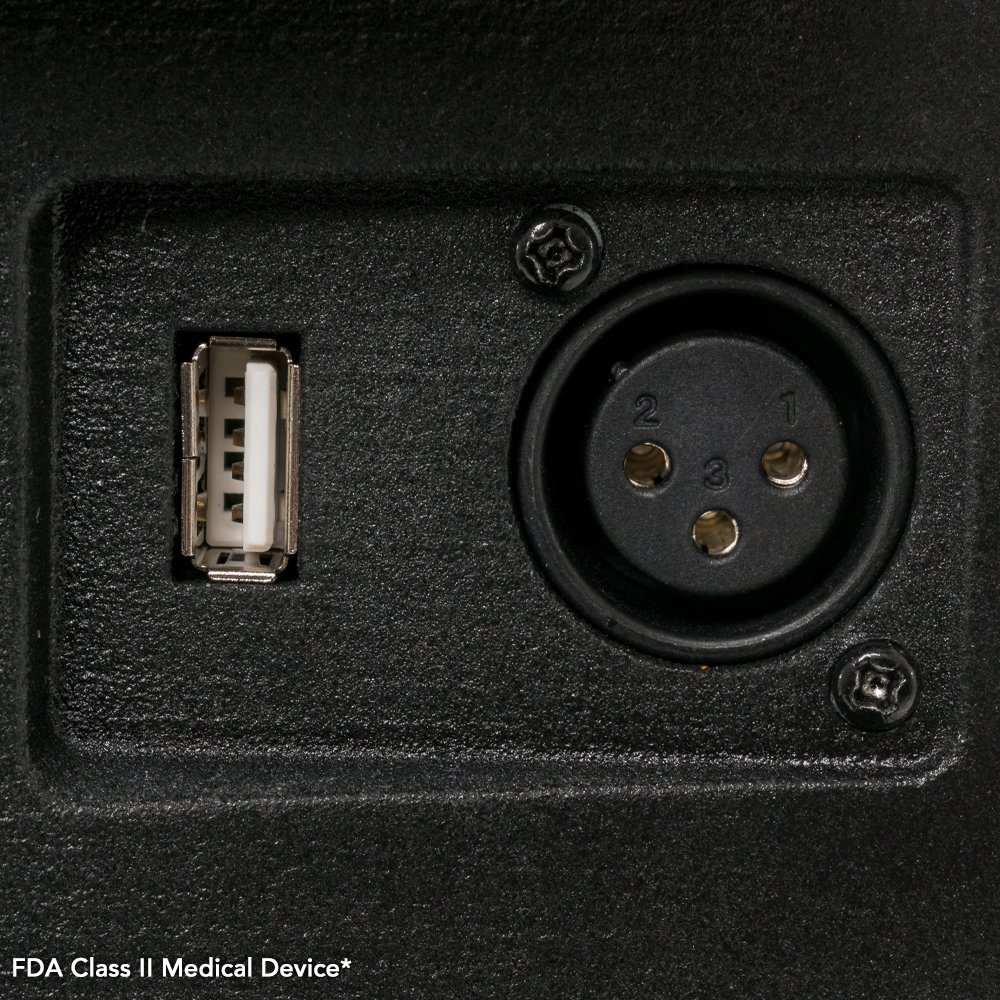

- Integrated USB mobile device charging port in tiller
- Delta tiller with wraparound handles
- Pinchless black vinyl hinge seat with 8-point swivel and sliders for increased comfort. Available in sizes 18” x 17” and 20” x 18”
- Exclusive stylish, lightweight, non-scuffing, black, low-profile tires
- Easy-grip tiller adjustment knob
- Easy access tiller-mounted charger port
*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments
| CATEGORY | SPECIFICATION |
|---|---|
| Weight Capacity |
400 lbs.
|
| Maximum Speed |
Up to 5.2 mph
|
| Ground Clearance |
2.4” at transaxle, 2.1″ at anti-tip, 3″ at side deck
|
| Turning Radius |
3-wheel: 42″
4-wheel: 52.25″ |
| Overall Length |
3-wheel: 45″
4-wheel: 47.25″ |
| Overall Width |
22.25″
|
| Seat-to-Ground Height |
22″- 25″
|
| Seat-to-Deck Height |
15.25″- 18.25″
|
| Front Tire |
3.5″x10″ solid
|
| Rear Tires |
3.5″x10″ solid
|
| Suspension |
N/A
|
| Range Per Charge1,2 |
Up to 11 miles (U-1); Up to 13 miles (40 AH)
|
| Total Weight Without Batteries3 |
3-wheel: 130.25 lbs.
4-wheel: 139 lbs. |
| Heaviest Piece When Disassembled3,5 |
64.5 lbs. (front section)
|
| Standard Seating |
Type: Foldable molded plastic;
Weight: 28.5 lbs.; Material: Black Vinyl; Dimensions: 18” width, 17” depth or 20” width, 18” depth |
| Drive System |
Rear-wheel drive, sealed transaxle with 24-volt DC motor
|
| Dual Braking System4 |
Regenerative and electromechanical
|
| Battery Requirements |
Size: (2) U-1 standard; Weight: 24.5 lbs. each;
Size: (2) 40 AH (optional) Weight: 32.5 lbs. each |
| Battery Charger |
3.5-amp, off-board (U-1), 5-amp, off-board (40 AH)
|
| Notes: 1 Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition and tire condition. These specifications can be subject to a variance of (+/- 10%). 2 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or 3%). 3 AGM or gel cell type required. 4 Tested in accordance with ANSI/RESNA, WC Vol2, section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity. 5 Battery weight may vary based on manufacturer. |
|
| All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. | |
